Synthetic JET KB5 bolometer
Information on the diagnostic may be found here.

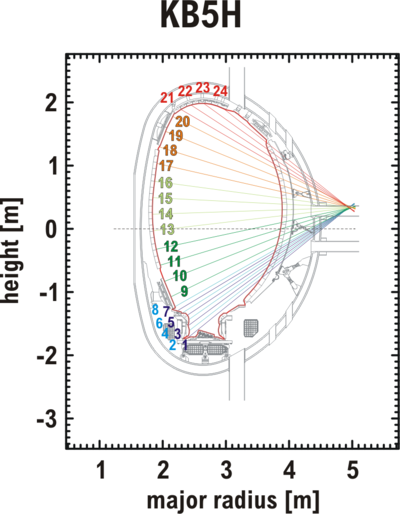

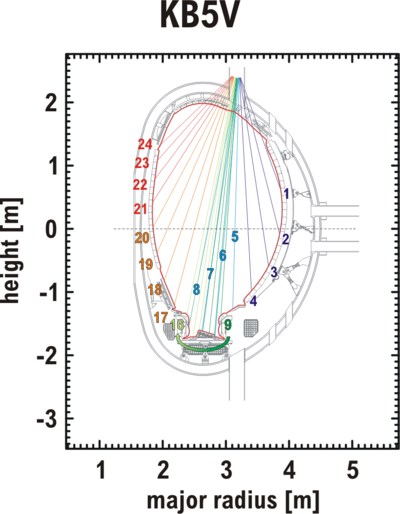

KB5H is in Octant 6 ($\phi=3\pi/4$ in JOREK, considering that $\phi=0$ is Octant 1) and KB5V in Octant 3 ($\phi=3\pi/2$).
Here is an example of postproc script to produce synthetic KB5 data:
namelist JET85943_R3P4Z0P9
si-units
for step 10 to 90000 by 100 do
expressions t
point 3.0 1.0 0.
expressions radiation
int_along_pol_line 3.5537 -0.7886 2.3929 -1.7272 2.3562
int_along_pol_line 3.6198 -0.6856 2.4205 -1.6093 2.3562
int_along_pol_line 3.6645 -0.6048 2.4024 -1.5325 2.3562
int_along_pol_line 3.6985 -0.5363 2.4129 -1.4351 2.3562
int_along_pol_line 3.7260 -0.4758 2.3884 -1.3671 2.3562
int_along_pol_line 3.7493 -0.4208 2.3041 -1.3344 2.3562
int_along_pol_line 3.7675 -0.3720 2.2458 -1.2875 2.3562
int_along_pol_line 3.7841 -0.3259 2.1943 -1.2311 2.3562
int_along_pol_line 3.8090 -0.2474 2.1298 -1.0753 2.3562
int_along_pol_line 3.8427 -0.1170 2.0286 -0.8316 2.3562
int_along_pol_line 3.8648 -0.0028 1.9325 -0.5836 2.3562
int_along_pol_line 3.8785 0.0993 1.8676 -0.3282 2.3562
int_along_pol_line 3.8873 0.2074 1.8220 -0.0333 2.3562
int_along_pol_line 3.8903 0.2996 1.8063 0.2302 2.3562
int_along_pol_line 3.8891 0.3913 1.8135 0.4950 2.3562
int_along_pol_line 3.8835 0.4840 1.8427 0.7559 2.3562
int_along_pol_line 3.8718 0.5897 1.8812 1.0398 2.3562
int_along_pol_line 3.8541 0.6950 1.9414 1.2977 2.3562
int_along_pol_line 3.8278 0.8125 2.0362 1.5449 2.3562
int_along_pol_line 3.7872 0.9494 2.1493 1.7824 2.3562
int_along_pol_line 3.7575 1.0320 2.2663 1.9060 2.3562
int_along_pol_line 3.7147 1.1353 2.4163 1.9787 2.3562
int_along_pol_line 3.6507 1.2648 2.6031 2.0164 2.3562
int_along_pol_line 3.6406 1.3661 2.8588 1.9835 2.3562
int_along_pol_line 4.0300 0.1625 3.5548 1.4896 4.7124
int_along_pol_line 3.9230 -0.3750 3.4211 1.6180 4.7124
int_along_pol_line 3.7079 -0.8068 3.3274 1.6931 4.7124
int_along_pol_line 3.4131 -1.1351 3.2523 1.7433 4.7124
int_along_pol_line 3.1063 -1.3412 3.1932 1.7827 4.7124
int_along_pol_line 2.8439 -1.5236 3.1511 1.8046 4.7124
int_along_pol_line 2.6213 -1.6009 3.1176 1.8204 4.7124
int_along_pol_line 2.4191 -1.5177 3.0853 1.8357 4.7124
int_along_pol_line 2.9144 -1.4676 3.1408 1.8094 4.7124
int_along_pol_line 2.8312 -1.5336 3.1256 1.8166 4.7124
int_along_pol_line 2.7433 -1.5750 3.1098 1.8241 4.7124
int_along_pol_line 2.6580 -1.6053 3.0948 1.8312 4.7124
int_along_pol_line 2.5786 -1.5958 3.0794 1.8385 4.7124
int_along_pol_line 2.4990 -1.5794 3.0647 1.8454 4.7124
int_along_pol_line 2.4255 -1.5226 3.0500 1.8524 4.7124
int_along_pol_line 2.3592 -1.4631 3.0361 1.8590 4.7124
int_along_pol_line 2.1879 -1.1918 2.9925 1.8775 4.7124
int_along_pol_line 2.0029 -0.8796 2.9502 1.8909 4.7124
int_along_pol_line 1.8463 -0.5303 2.9040 1.9055 4.7124
int_along_pol_line 1.7538 -0.1535 2.8574 1.9203 4.7124
done
